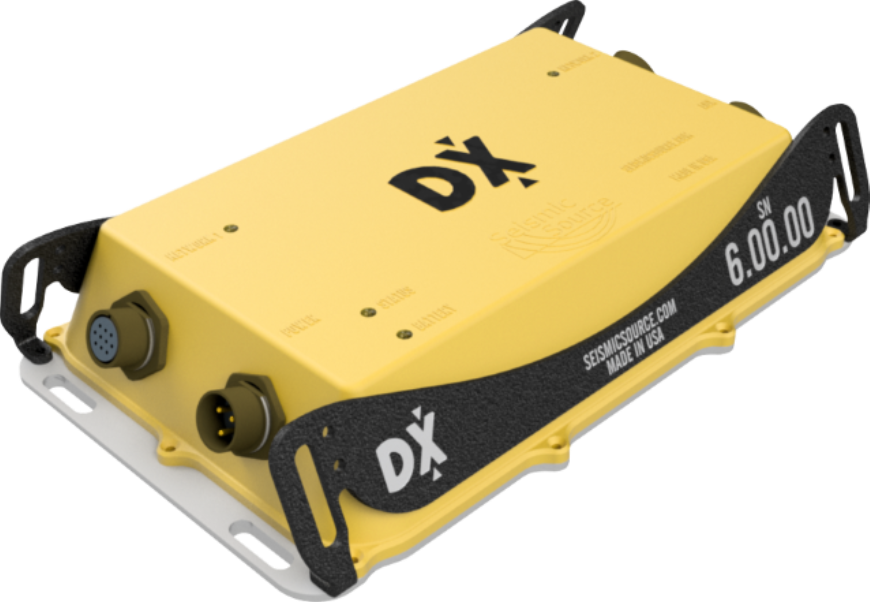

The DX6 is a 6 channel seismograph that can be used for almost any seismic project. With its internal memory, optional USB memory and GPS, the flexible DX6 node can be deployed anywhere, at any time.

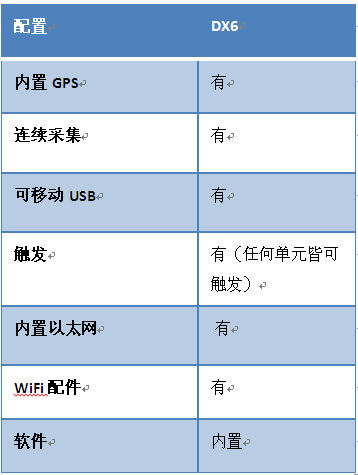

Autonomous Operation features:

Internal GPS: disciplines clock, locates node, and provides accurate timing.

Internal memory plus optional external USB memory for data security and long term operation.

Records with geophones, hydrophones, microphones and/or accelerometers.

Includes full featured, complete software package for data collection, file creation and SEG-Y, SEG-D, ASCII or miniSEED output.

Same DX6 node can be used with Wi-Fi or cabled network for real-time operation.

Scheduled Wakeup and Sleep times.

Low-Power Wireless Radio built into unit.

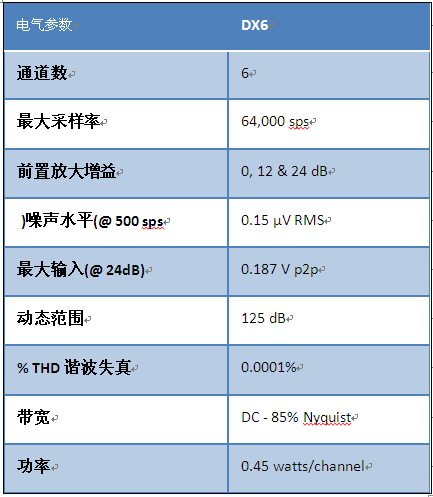

Industry Leading Specifications:

ADC — 24 delta-sigma

Channels per Node — 6

Dynamic Range — 125 dB @ 500 sps

Distortion — -122 dB @ 500 sps

Max Input Voltage — 7V Peak-to-Peak

Noise — 0.15μV @ 500 sps

Bandwidth — DC to 27 KHz

Preamp Gains — 1x, 4x, & 16x

Internal Memory — 16 GB (expandable)

Sample Rates — 125, 250, 500, 1k, 2k, 4k, 8k, 16k, 32k & 64k sps

Internal Radio — Mesh Radio Network

Internal Network — 10/100Base-T

Power Draw — 2 Watts @ 12V
